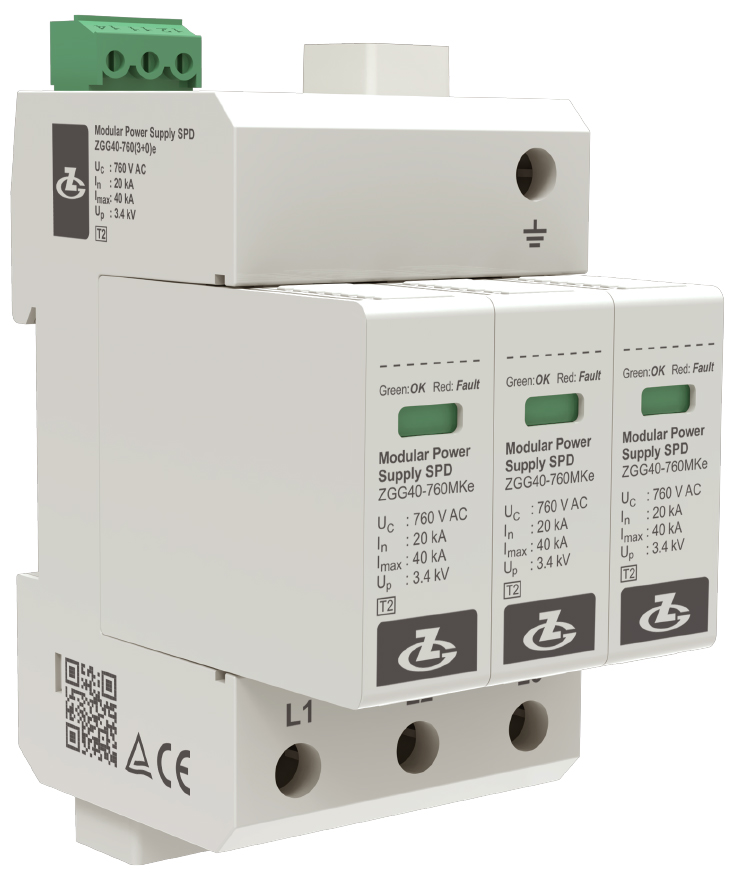

ZGG40-760(3+0)e
General
The ZGG40-760(3+0)e Modular Power Supply SPD consists of three MOV power supply modules and a base. It provides secondary protection for L-PEN, and is equipped with anti-plug protection. This Modular Power Supply SPD features over-temperature protection, failure indication, and centralized remote signaling dry contacts. The dry contacts facilitates remote monitoring of the modular installation status and operating status.

Features
1. Reverse insertion protection
2. High discharge capacity and low residual voltage
3. Overheating protection
4. Failure indication and centralized remote signaling alarm dry contacts
5. Degree of protection: IP20; housing flammability: UL 94 V-0

Technical Data
Operating Environment
Temperature range -40 ℃～+85 ℃
Relative humidity range 5%～95%
Altitude range -500 m～+5000 m
Technical Parameters
Model ZGG40-760(3+0)e
SPD according to IEC 61643-11 Class Ⅱ
SPD according to EN 61643-11 Type 2
Rated voltage U0 600 V AC
Maximum continuous operating voltage UC 760 V AC
Operating frequency 50/60 Hz
Nominal discharge current In (8/20 μs) 20 kA
Maximum discharge current Imax (8/20 μs) 40 kA
Voltage protection level Up 3.4 kV
Maximum backup fuse 80 A gL/gG
Rated short-circuit current ISCCR 25 kA
Residual current IPE ≤0.5 mA
Access mode In parallel
Protection mode L-PEN
Response time tA ≤25 ns
Cross-sectional area of the copper wire
connected by the terminal		 Flexible wire: 1.5 mm2 to 25 mm2
Rigid wire 1.5 mm2 to 35 mm2
Cross-sectional area of the copper wire
connected by the remote terminal		 0.5 mm2 to 1.5 mm2
Intensity of Remote Signaling Alarm Contact AC: 250 V/0.5 A 125 V/1 A DC: 30 V/0.1 A
Torque: Connecting Terminal/Remote Signaling Interface 2.5 N•m /0.25 N•m
Degree of Protection (IP Code) IP20
Installation system TN-C

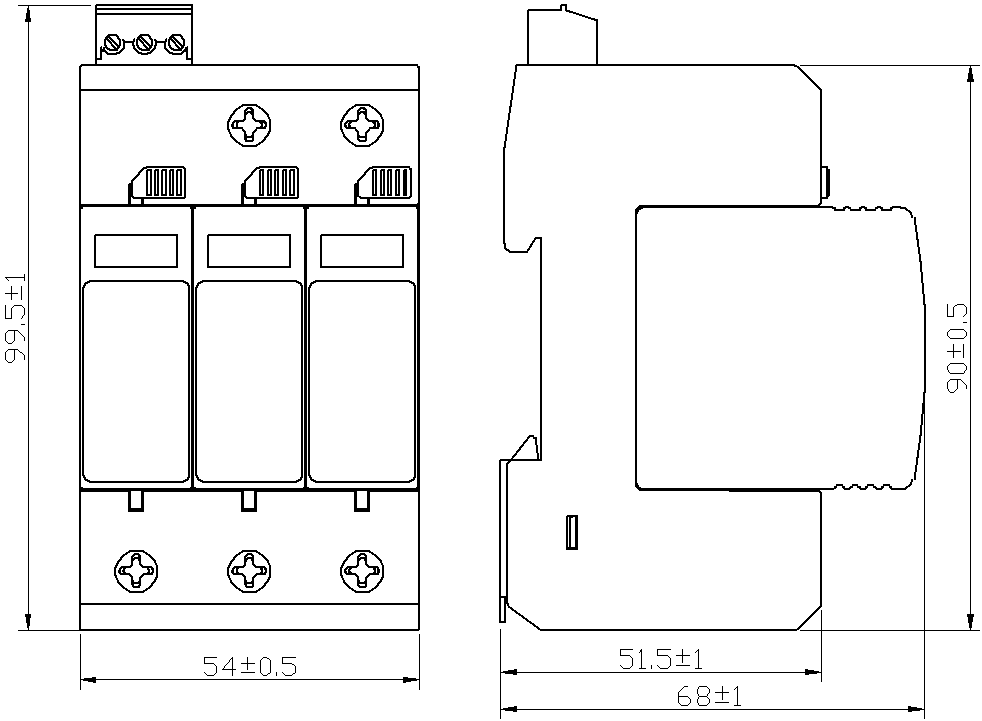

Dimensions 106 mm×54 mm×76.6 mm
Installation mode 35 mm DIN rail (Type TH 35, according to IEC/EN 60715)
Housing flammability UL 94 V-0

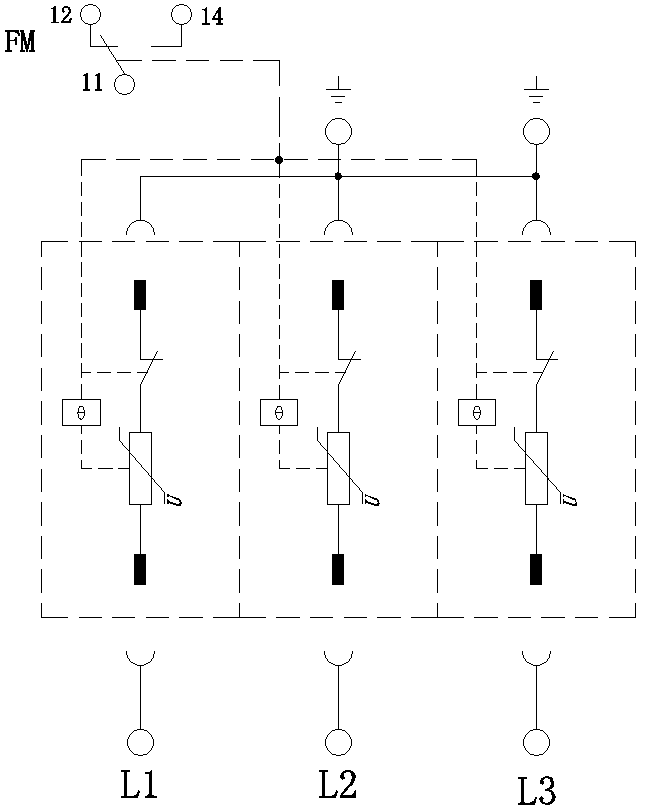

Circuit Diagram

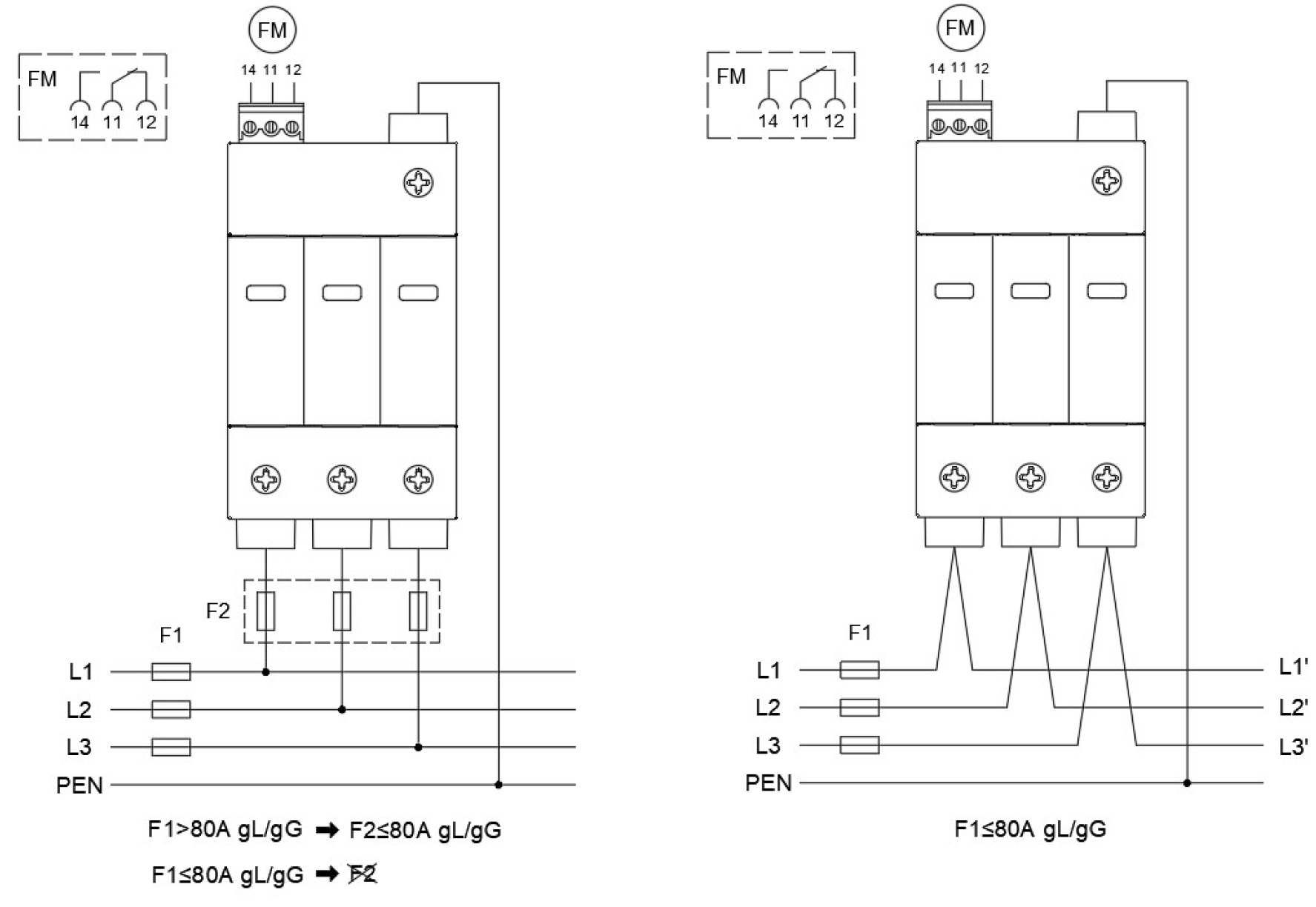

Configuration
